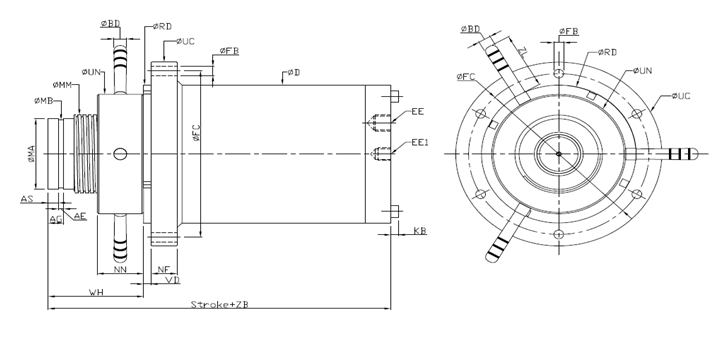

Model 28 Locknut type Cylinder
| LOCK NUT CYL | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Sr.No | ØBORE | ØD | AS | AE | AG | WH | NN | VD | NF | ØMA | ØMB | ØMM (SQ. THREAD) | ØUN | ØBD | ZL | ØRD | ØUC | ØFC | ØFB | EE | EE1 | KB | Stroke+ZB |
| 1 | 80 | 100 | 10 | 10 | 20 | 77 | 40 | 10 | 28 | 60 | 58 | Ø70 X 4 TPI | 100 | 1" | 4" | 100 | 180 | P.C.D.Ø150 X 4 NOS | 14 | 1/4" BSP | 1/4" BSP | ̶ | 229 |
| 2 | 100 | 125 | 12.5 | 10 | 22.5 | 85 | 50 | 12 | 28 | 75 | 70 | Ø90 X 4 TPI | 140 | 1" | 6" | 128 | 205 | P.C.D.Ø175 X 4 NOS | 14 | 1/4" BSP | 1/4" BSP | ̶ | 242 |
| 3 | 115 | 140 | 12.5 | 10 | 22.5 | 118 | 50 | 12 | 35 | 85 | 80 | Ø100 X 4 TPI | 140 | 1" | 6" | 142 | 230 | P.C.D.Ø185 X 6 NOS | 14 | 3/8" BSP | 1/4" BSP | ̶ | 290 |
| 4 | 125 | 150 | 12.5 | 10 | 22.5 | 103 | 50 | 12 | 35 | 90 | 85 | Ø105 X 4 TPI | 150 | 1" | 6" | 150 | 230 | P.C.D.Ø185 X 6 NOS | 14 | 3/8" BSP | 1/4" BSP | ̶ | 285 |
| 5 | 140 | 170 | 12.5 | 10 | 22.5 | 93 | 55 | 12 | 35 | 105 | 99 | Ø125 X 2 TPI | 180 | 1" | 6" | 170 | 280 | P.C.D.Ø225 X 6 NOS | 19 | 3/8" BSP | 1/4" BSP | ̶ | 290 |
| 6 | 160 | 190 | 12.5 | 10 | 22.5 | 123 | 55 | 12 | 35 | 110 | 105 | Ø125 X 2 TPI | 200 | 1" | 6" | 190 | 300 | P.C.D.Ø250 X 6 NOS | 19 | 3/8" BSP | 1/4" BSP | ̶ | 320 |
| 7 | 180 | 215 | 12.5 | 10 | 22.5 | 135 | 75 | 15 | 35 | 125 | 119 | Ø138 X 2 TPI | 200 | 1" | 8" | 215 | 300 | Ø265 X 6 NOS | 19 | 1/2" BSP | 1/4" BSP | 10 | 360 |
| 8 | 200 | 240 | 12.5 | 10 | 22.5 | 120 | 75 | 15 | 50 | 125 | 119 | Ø138 X 2 TPI | 200 | 1" | 8" | 240 | 350 | P.C.D.Ø310 X 6 NOS | 19 | 1/2 BSP | 1/4" BSP | 10 | 360 |
| 9 | 225 | 270 | 12.5 | 10 | 22.5 | 125 | 75 | 15 | 50 | 125 | 119 | Ø138 X 2 TPI | 200 | 1" | 8" | 270 | 355 | P.C.D.Ø310 X 6 NOS | 19 | 1/2" BSP | 1/4" BSP | 12 | 378 |
| 10 | 250 | 300 | 20 | 10 | 30 | 185 | 90 | 15 | 50 | 154 | 148 | Ø170 X 2 TPI | 260 | 1" | 12" | 300 | 400 | P.C.D.Ø350 X 6 NOS | 19 | 1/2" BSP | 1/4" BSP | 12 | 465 |
| 11 | 300 | 360 | 20 | 10 | 30 | 175 | 90 | 15 | 60 | 154 | 148 | Ø170 X 2 TPI | 260 | 1" | 12" | 360 | 455 | P.C.D.Ø410 X 6 NOS | 19 | 1/2" BSP | 1/4" BSP | 14 | 480 |
| 12 | 320 | 390 | 20 | 10 | 30 | 165 | 90 | 15 | 70 | 154 | 148 | Ø170 X 2 TPI | 260 | 1" | 12" | 390 | 500 | P.C.D.Ø450 X 6 NOS | 19 | 1/2" BSP | 1/4" BSP | 14 | 500 |
| 13 | 360 | 415 | 20 | 10 | 30 | 155 | 90 | 20 | 75 | 180 | 174 | Ø200 X 2 TPI | 300 | 1" | 12" | 415 | 515 | P.C.D.Ø465 X 6 NOS | 19 | 1/2" BSP | 1/4" BSP | 14 | 510 |
| 14 | 400 | 485 | |||||||||||||||||||||
| 15 | 420 | 485 | |||||||||||||||||||||
