HI Standard Hydraulic Cylinders

Model 22 Cap fixed Plain Eye Mount

Request Enquiry

Model 22 Cap fixed Plain Eye Mount

These mounts are for applications in which the machine member travels in a curved path within one plane. These mounts can be used both in compression (push) and tension (pull). Care must be exercised to prevent rod buckling in compression applications with long strokes.

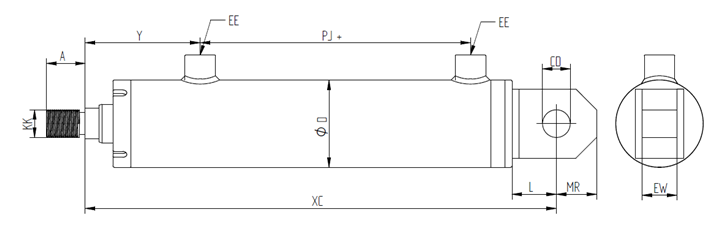

Dimensional Reference Table

Bore	Rod	KK	A	CD	EW	MR	L	Y	EE	D	PJ	XC
50	28	M20 x 1.5	28	20	25	29	32	83	1/4" BSP	63	45	190
50	36	M27 x 2	36	20	25	29	32	83	1/4" BSP	63	45	190
63	36	M27 x 2	36	32	32	35	45	83	3/8" BSP	76	45	203
63	45	M33 x 2	45	32	32	35	45	83	3/8" BSP	76	45	203
80	45	M33 x 2	45	40	40	45	55	90	1/2" BSP	100	58	245
80	56	M42 x 2	56		40	45	55	90	1/2" BSP	100	58	245
100	56	M42 x 2	56	50	50	56	75	100	1/2" BSP	125	73	290
100	70	M48 x 2	63	50	50	56	75	100	1/2" BSP	125	73	290
125	70	M48 x 2	63	63	63	65	80	120	3/4" BSP	150	90	340
125	90	M80 x 3	95	63	63	65	80	120	3/4" BSP	150	90	340
