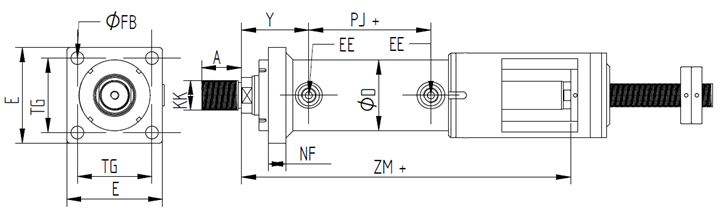

Model 26 Double Rod Cylinder
| BORE | ROD | KK | A | D | E | TG | FB | EE | NF | Y | Stroke+ | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZM | |||||||||||
| 80 | 56 | M42 X3 | 56 | 100 | 135 | 105 | 18X4 | 1/2" BSP | 13 | 95 | 172 | 474 |
| 100 | 56 | M42 X3 | 56 | 125 | 135 | 125 | 18X5 | 1/2" BSP | 30 | 100 | 168 | 484 |
| 125 | 70 | M48 X2 | 63 | 150 | 180 | 145 | 18X4 | 1/2" BSP | 32 | 120 | 220 | 595 |
