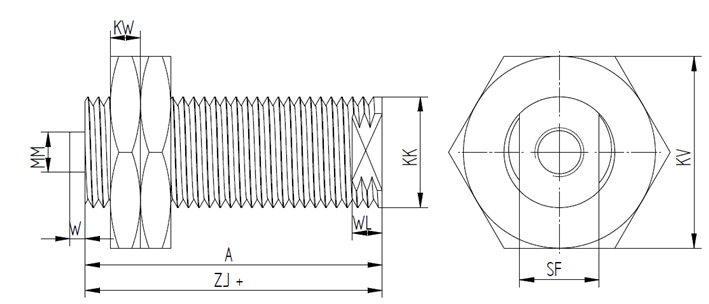

Model 27 Threaded body Cylinder
| Bore | MM | KK | SF | KV | WL | W | ZJ |
|---|---|---|---|---|---|---|---|
| 12 | 10 | M20 x 1.5 | 15.8 | 38 | 6 | 3 | 50.5 |
| 14 | 12 | M22 x 2 | 15.8 | 38 | 6 | 3 | 59 |
| 16 | 14 | M25 x 2 | 20 | 38 | 10 | 3 | 61 |
| 20 | 16 | M30 x 2.5 | 20 | 38 | 10 | 3 | 68 |
| 25 | 16 | M33 x 2.5 | 20 | 38 | 10 | 3 | 68 |
| 28 | 20 | M38 x 2.5 | 20 | 50.8 | 10 | 3 | 75 |
| 30 | 20 | M42 x 2.5 | 30 | 50.8 | 10 | 3 | 75 |
